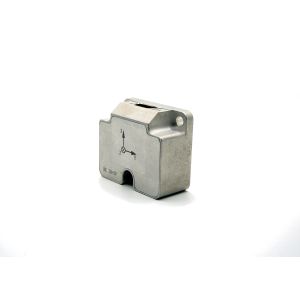

MG3-1A MEMS Gyroscope provides accurate and stable 3-axis angular rate measurements for UAVs, autonomous navigation systems, and robotic stabilization.
It includes a 3-axis MEMS gyroscope, temperature sensor, signal processing board, structural frame, and dedicated software with RS-422 output and full error compensation (temperature, misalignment, nonlinearity).
Technical specifications: ±400°/s range, zero-bias instability 0.3°/h, random walk 0.15°/√h, start-up 17 s, weight 52 g. Ideal for drone navigation, robotic motion control, mapping instruments, and autonomous vehicles.
As a Stim210 replacement, it delivers a drop-in high-performance MEMS gyroscope solution.
Main technical parameters
1.2.1 Technical index of gyroscope
| Parameter | Unit | Test conditions | MG3-1A | MG3-1C | MG3-1E |
| Measuring range | °/s | | ±400 | ±400 | ±300 |
| Zero-bias instability | °/h | Allan variance | 0.3 | 0.1 | 0.2 |
| Zero bias stability | °/h | 10s smooth, RMS, Room temperature | 3 | 1 | 1 |
| Zero bias variation at full temperature | °/h | 10s smoothing, RMS, temperature change rate 1℃/min | 20 | 10 | 5 |
| Random walk | °/√h | Allan variance | 0.15 | 0.05 | 0.03 |
| Output noise | p-p | Peak (Half Peak, RMS * 3) | 0.3 | 0.25 | 0.2 |
| Zero-bias repeatability | °/h | Q = 6, Room temperature | 3 | 1 | 0.5 |
| Zero bias acceleration sensitivity | | Test at ± 1 g | 2 | 2 | 2 |
| Resolution | °/h | | 2 | 1 | 1 |
| Bandwidth | Hz | | 250 | 250 | 400 |
| Scale factor nonlinearity | ppm | Room temperature | 100 |
| Scale factor repeatability | ppm | Q = 3, Room temperature | 100 |
| Cross coupling | % | Room temperature | 0.1 |
1.2.2 Electrical characteristics
| Parameter | Unit | MG3-1A |
| Voltage | V | +5±0.25 |
| Startup current | mA | ＜400 |
| Steady-state power consumption | W | ＜1.4 |
| Ripple | mV | 100 |
1.2.3 Environmental adaptability
| Parameter | Unit | MG3-1A |
| Operating temperature | ℃ | -45~85 |
| Storage temperature | ℃ | -55~105 |
1.2.4 Others
| Parameter | Unit | MG3-1A |
| Weight | g | 52±5 |
| Start time | s | 1 |
Overall dimension
