Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU

Brand Name : Firepower

Model Number : TG-200SL

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 10 days for sample

Packaging Details : carton with sponge

product name : dynamic navigation inertial sensor

Static accuracy : <1’

Dynamic accuracy : <2'

Measuring range : ±5 °

Preparation time : <60s

Response time : <20ms

Weight : 3kg

Supply voltage : DC24V±2V

Contact Now

Dynamic navigation sensor, high update rate IMU, inertial attitude sensor

Introduction

It is a self-developed inertial attitude measurement system. Inertial navigation technology is used to provide pitch angle and roll angle information for vehicles in real time. The product has unique design, high precision, high stability, high data update frequency and high performance, which is an ideal attitude measurement product for rotating motion carrier.

Applications

It is used for the measurement and control of ground carriers such as combat vehicles, radar vehicles and armored vehicles.

Features

Dynamic use,

high data update rate,

fast response

Anti-disturbance,

suitable for harsh environment

High precision and large measuring range

All-solid-state,

long-life

Specifications

Main technical indicators Physical dimensions and electrical characteristics
Static accuracy <1’ Overall dimensions 100 x 120 x 100mm
Dynamic accuracy <2’ Weight 3Kg
Measuring range ±5 ° Supply voltage DC24V±2V
Preparation time <60s Power consumption <20W
Response time <20ms
Environmental indicators
Storage temperature -50 ℃ ~ 80 ℃
Operating temperature -40℃~75℃:
Vibration GJB150.16A-2009
Impact 30g, half sine, 8 ~ 11 ms
Output mode
Communication serial port 422 and CAN
Baud rate 115200/500 K


Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU

Product Tags:

IMU Accelerometer Gyro Sensor



Dynamic Navigation Accelerometer Gyro Sensor



High Update Rate accelerometer and gyroscope


Cheap Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU for sale

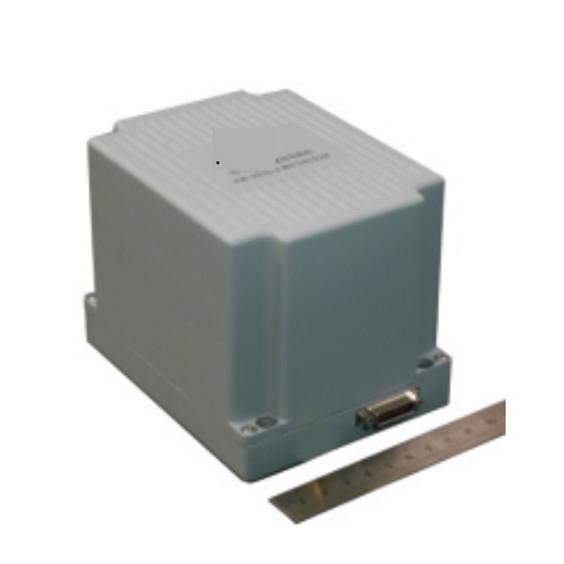

Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU Images
