Angular Vibration 2 Axis Turntable Frame Based Mechanical Shafting

Name: Angular Vibration 2 Axis Turntable Frame Based Mechanical Shafting
Brand: Firepower
Price: 1 USD

Cheap Angular Vibration 2 Axis Turntable Frame Based Mechanical Shafting for sale

Brand Name : Firepower

Model Number : 16488C

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,L/C

Supply Ability : 1000pcs

Delivery Time : 1 week

Packaging Details : wooden box

Acc Range : ±20g

Gyro range : ±450º/s

Zero-bias instability : 5º/h

Zero-bias acceleration sensitiv : 20º/h/g

Bandwidth : 330 Hz

Voltage : 3.3±0.15V

Weight : 48g

Magnetometer Sensitivity : 0.1mgauss/LSB

Contact Now

Product Description

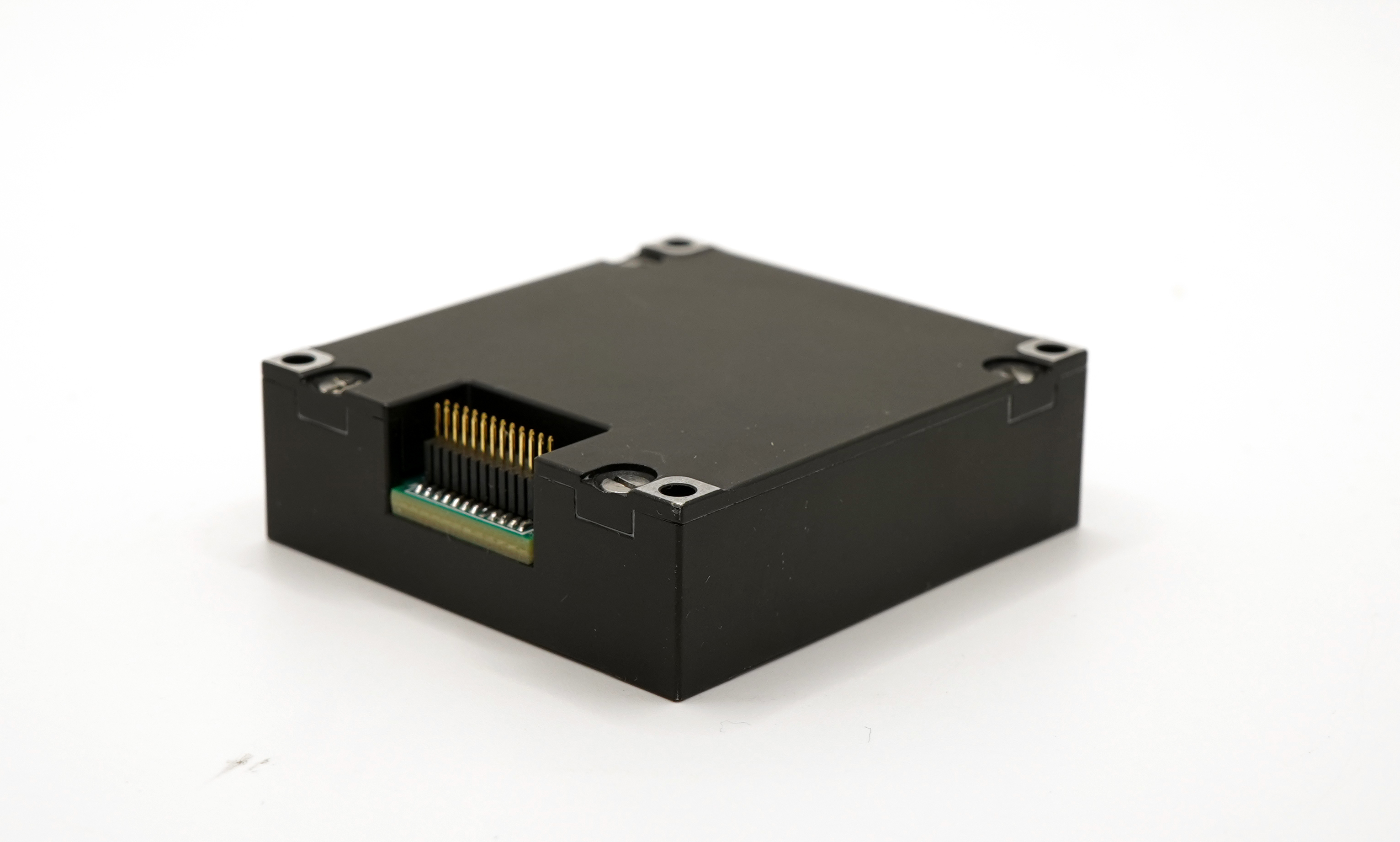

16488C Multi-Degree-of-Freedom Inertial Measurement Unit (IMU) is a high-performance, fully integrated inertial system equivalent to the ADIS16488. It combines a three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, and barometric pressure sensor in a compact module.

This IMU provides accurate measurements of angular rate, linear acceleration, magnetic field, and air pressure for dynamic platforms such as autonomous vehicles, UAVs, robotics, and navigation systems.

Featuring built-in error compensation (including temperature drift, misalignment, and nonlinear correction), the 16488C ensures exceptional stability and precision in harsh environments. Data is output via SPI or UART interface under standard communication protocols, enabling easy system integration and real-time motion sensing.

Technical Parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range	Configurable		±450		º/s
	Zero-bias instability	Allan variance, better than		5		º/h
	Zero bias stability	10s smooth, RMS, better than		10		º/h
	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		60		º/h
	Random walk	1σ		0.26		º/√h
	Zero-bias repeatability	1σ		20		º/h
	Zero-bias acceleration sensitive			20		º/h/g
	Scale factor repeatability	1σ		200		Ppm
	Scale factor nonlinearity	FS=450 º/s		200		Ppm
	Bandwidth (-3dB)			330		Hz
	Cross coupling			0.2		%
Accelerometer	Dynamic measuring range	Configurable		±20		g
	Zero bias stability	Allan variance		0.07		mg
	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
	Random walk	1б		0.029		m/s/√h
	Zero-bias repeatability	1б		0.5		mg
	Zero bias stability	10s smooth, RMS, better than		0.25		mg
	Scale factor repeatability	1σ		500		ppm
	Scale factor nonlinearity	FS=10g		500		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.2		%
Magnetometer	Dynamic measuring range			±2.5		gauss
Magnetometer	Sensitivity			0.1		mgauss/LSB
Barometer	Pressure range		300		1100	mbar
Barometer	Sensitivity			6.1 × 10^-7		mbar/LSB
Electrical Characteristic	Voltage	Direct current		3.3±0.15		V
	Power consumption			0.5		W
	Ripple	P-P		100		mV
	Weight			48±2		g
Use Environment	Operating temperature	Scalable	-45		85	℃
Use Environment	Storage temperature		-55		85	℃

outline drawing
