Low Bias Fiber Gyro Sensor 50 Ppm Single Axis Medium Precision

Name: Low Bias Fiber Gyro Sensor 50 Ppm Single Axis Medium Precision
Brand: Firepower
Price: 1 USD

Cheap Low Bias Fiber Gyro Sensor 50 Ppm Single Axis Medium Precision for sale

Brand Name : Firepower

Model Number : MFOG-1703

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 100/month

Delivery Time : 20 days for sample

Packaging Details : sponge+box

Product Name : Fiber Optic Gyroscope

Random Walk Cefficient : ≤0.02°/√h

Zero Bias Repeatability : ≤1°/h

Overall Dimensions : 40mm × 20mm

Baud Rate : 921600(Customizable)bps

Working Temperature : -45~+70℃

Contact Now

MFOG-1703 micro-nano fiber optic gyroscope is built for mission-critical environments, offering stable output, high vibration resistance, and wide operating temperature range.
Its modular design includes an optical path unit, control board, and aluminum housing. It can directly replace Fizoptika VG1703 in existing systems without modification.

Composition

The product is mainly composed of the following components:

an optical path assembly;
Detection and control signal circuit board;
Optical fiber ring skeleton, shell and other structural parts;

4.3 Appearance and dimension

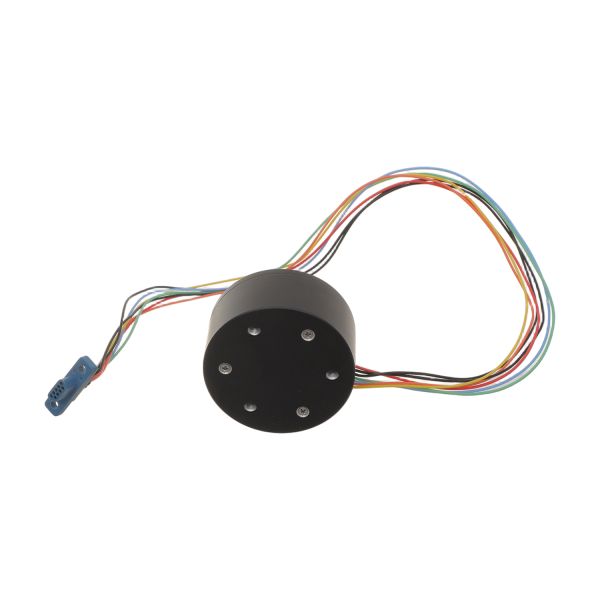

The product is cylindrical with overall dimension of φ40mm × 20mm, and 3 M3 threads on the bottom are connected with the outside.

4.4 Weight

≤40g

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

4.8 Main performance parameters

Table 1 Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/ °/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h 1/2)	≤0.02
6	Zero-bias temperature sensitivity (uV/° C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/° C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power supply (V)	5+0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 × 20
